PDF features
The bar on top of the document contains several PDF features.

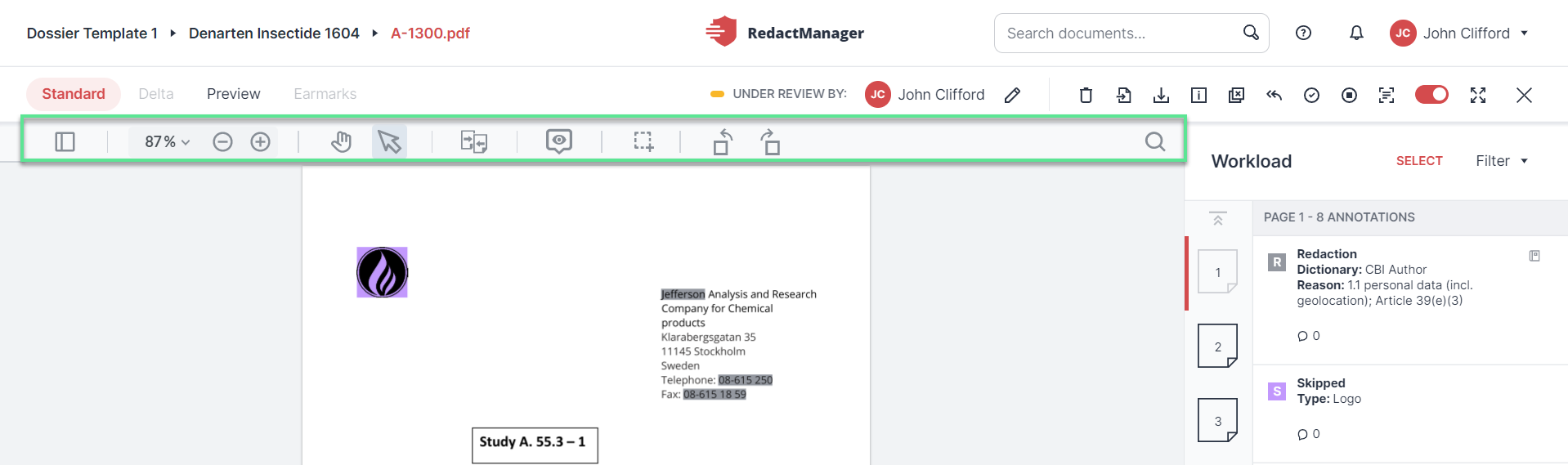

PDF features in the Standard view
For further information on the different features, please see below.
Panel and page zoom icons

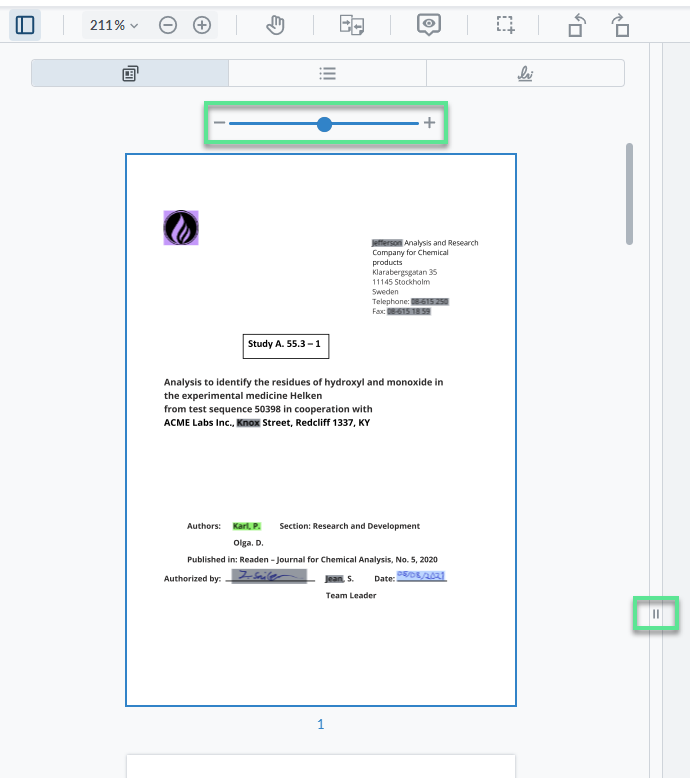

The panel view
shows thumbnails of the document pages and allows you to access the individual pages by clicking on one of the thumbnails.
If you hover over the right border of the panel view, the cursor turns into a double-sided arrow. You can then use drag & drop to change the width of the panel view.
 |
Thumbnail zoom
Good to know:
RedactManager reloads the content dynamically (on demand and pagewise).
That is why the thumbnails in the panel view show the markings only on the pages you have already visited.
If you click on the thumbnail of a page you have not yet visited, the markings on that page will appear as well.
Refreshing the page is equivalent to restarting the app. It will reset the display, i.e., the markings on the thumbnails of pages you visited before refreshing the browser will disappear.
That is one of the reasons why we recommend not refreshing the browser if possible.
The selection mode is the default mode that allows you to select text.
Click Pan to move the displayed document area. That is useful if you have zoomed into a page.
The mouse pointer then turns into a hand, which you can use to move the document.
Return to text selection by clicking Select or pressing "Esc".
"Move view" icon

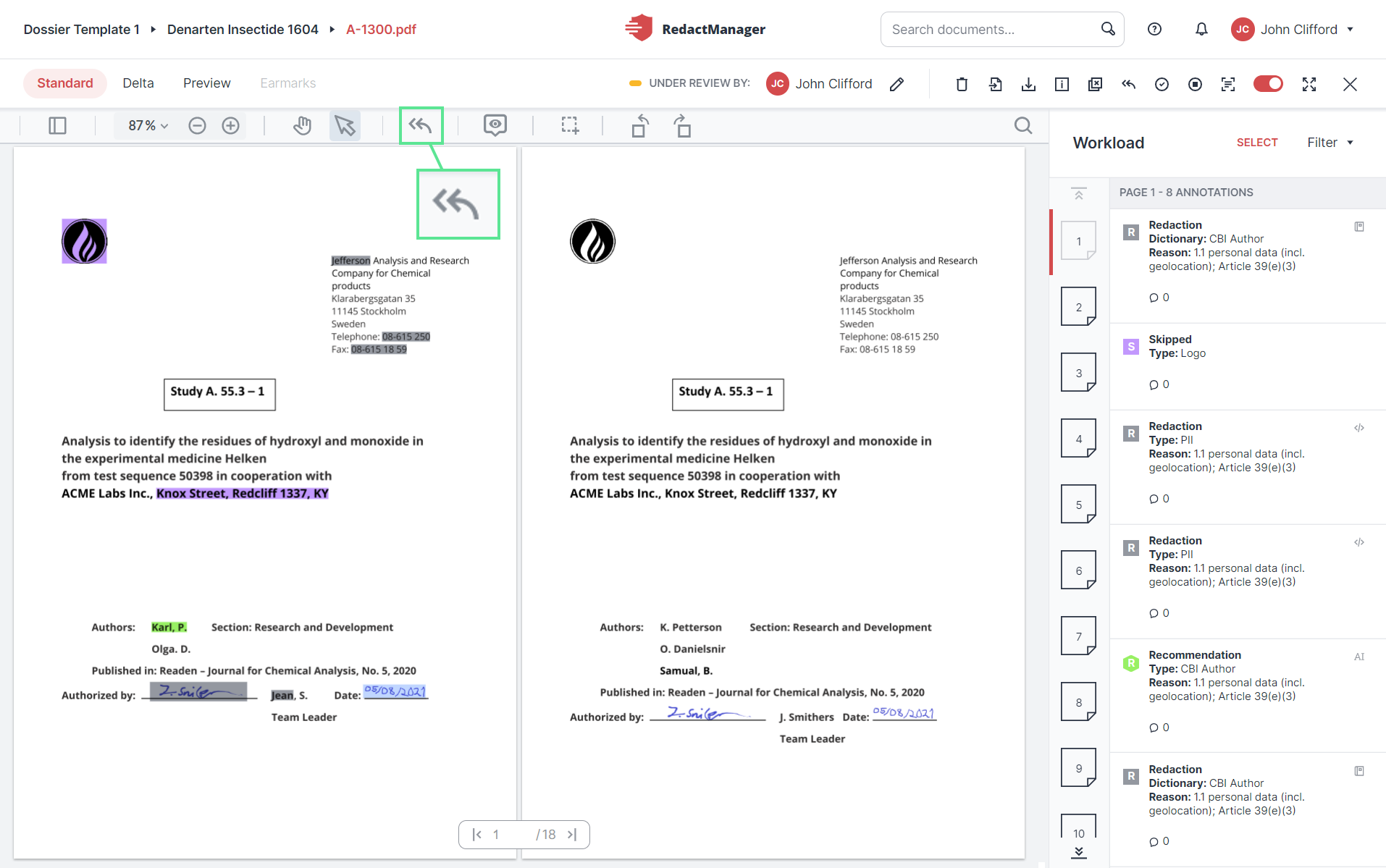

The Compare feature compares the currently opened document to another version of the same document redacted outside RedactManager. That allows you to check whether RedactManager would redact the same passages.
Click the Compare icon.
"Compare" icon
The file explorer opens, and you can select the document you would like to compare to. The document appears to the right of the document you've opened in RedactManager.
Click the backward arrow to leave the comparison mode.
Leave comparison mode
By clicking the Enable annotation tooltips icon, you can enable the annotation tooltips in the Editor. The annotation tooltips will be displayed when you hover over markings in the document.
Click the icon again to disable the tooltips.
"Enable annotation tooltips" icon
Use the Rectangle feature to select and redact larger areas, e.g. graphics, logos, and paragraphs of text.
"Rectangle redaction" icon
Rectangle redactions are a type of manual redaction. For a step-by-step guide on how to create a rectangle redaction, please see Rectangle redaction.
Click the Rotate page icon to rotate the current page.

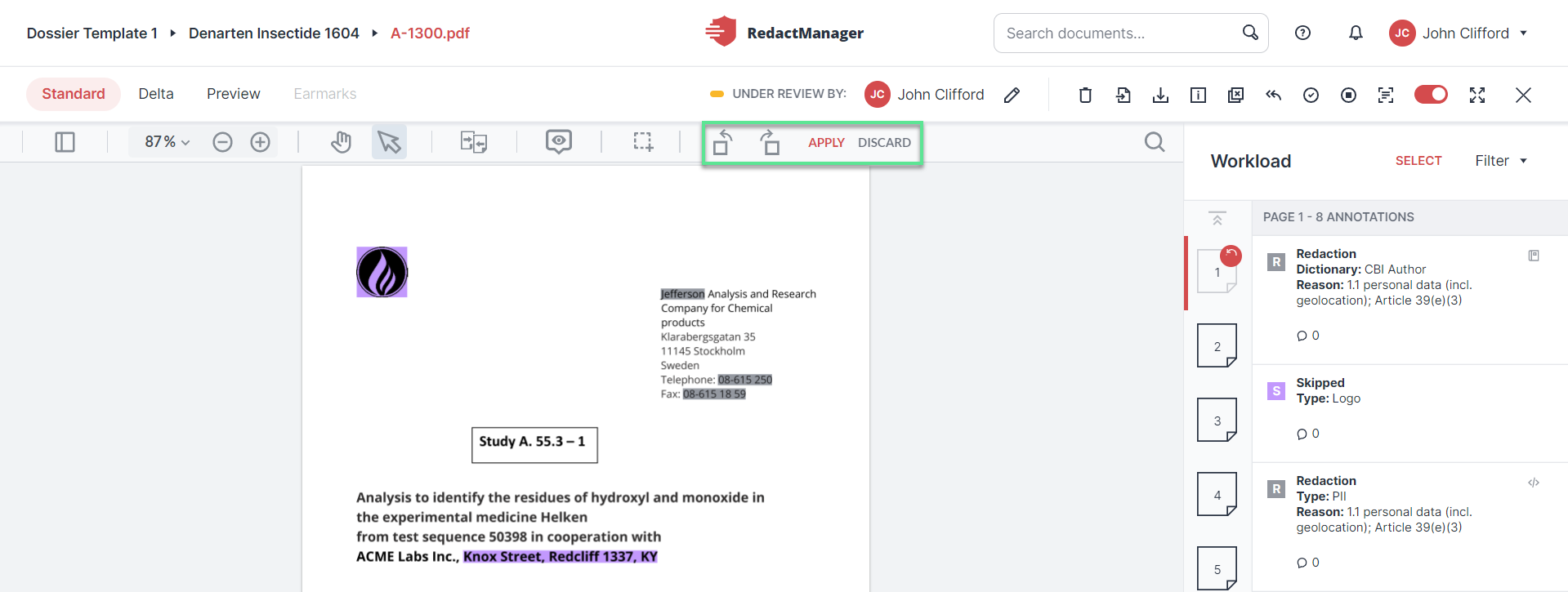

Click Apply or Discard to confirm or discard the new page orientation. The two options will appear next to the Page Rotation icon once you have rotated a page.
Apply or discard page rotation

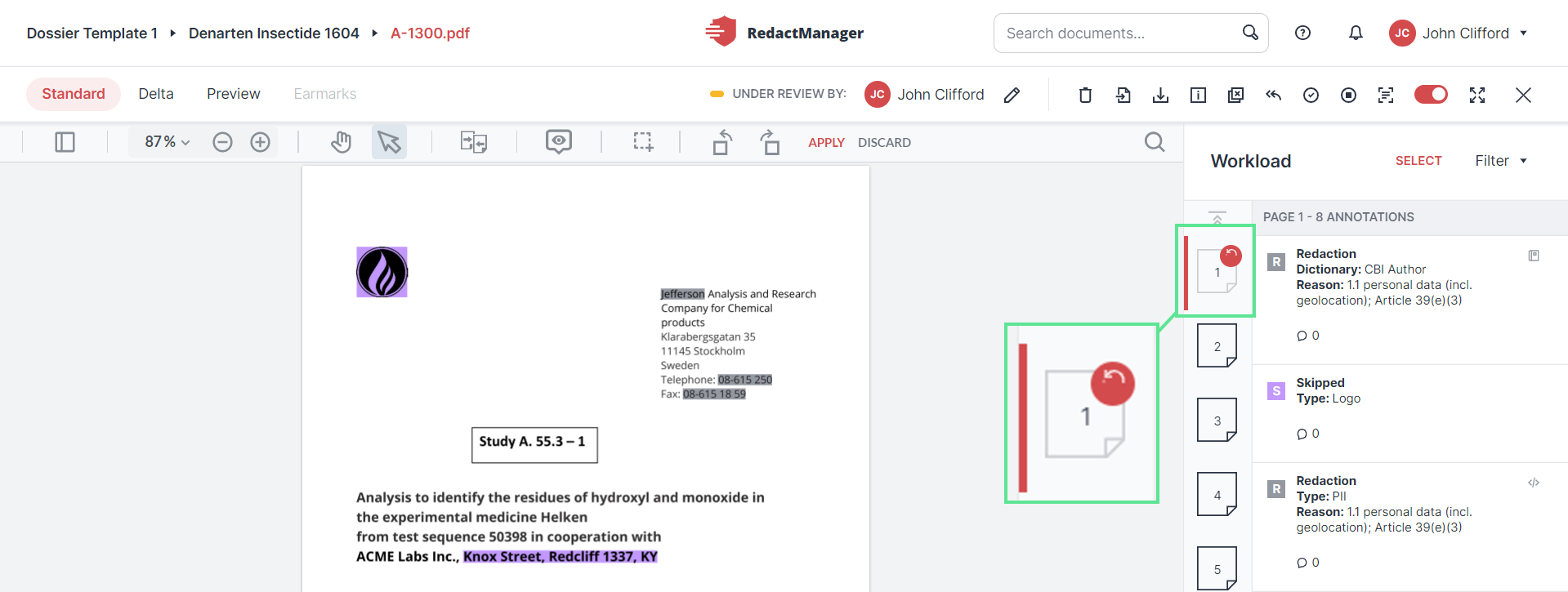

As long as you have not clicked on Apply the page will be marked with a small rotation arrow in the Workload page overview. That shows you that you still have to confirm the page rotation.
Confirmation of page rotation pending
Click on the magnifying glass and enter your search term.
"Search document" icon
Alternatively, you can mark a passage in the text. A magnifying glass appears under the text. Click the magnifying glass to look for the selected passage elsewhere in the document.
You can narrow your search as follows:
Case-sensitive filter:
Check the box to limit the search to exactly this character sequence and is case-sensitive.
Whole word filter:
Check the box to limit the search to whole words.
Mark a text passage and click the Copy icon
to copy the selected text. The copy feature is helpful if you want to use the selected text in another context.
The default color for redactions in the preview mode is the preview color. Click Show redactions as in final document
to make the redactions unreadable, and Show redactions in preview color
to make them readable again. The respective icons are only available in the Preview mode.
Show redactions as in final document
